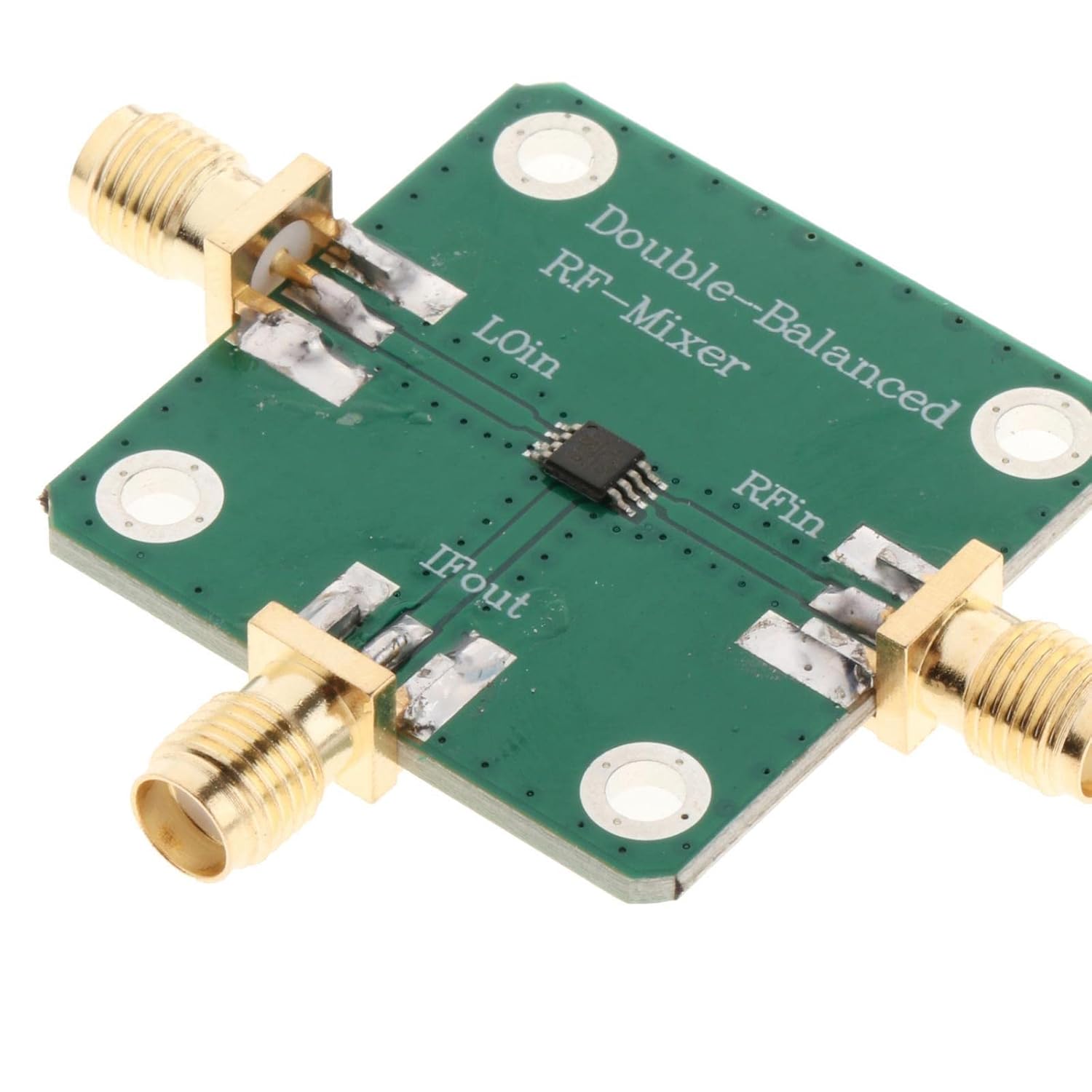

Dual Balanced RF Mixer 1.5-4.5GHz DC-1.5GHz Frequency Transducer SMA Female Module | High Conversion Efficiency RF Mixer for Inrial & Home Use

Description: - This is a double-balanced radio frequency mixer of RFin=1.5--4.5GHz, RFout=DC--1.5GHz. - It has both its inputs applied to differential circuits, so that neither of the input signals and only the product signal appears at the output. - Radio frequency microwave receiver down-conversion, with double-balanced microwave diodes inside, high reliability, high conversion efficiency: 8.5dB loss, high isolation between local oscillator and RF input: 40dB. - This mixer has good isolation at RF and IF ends relative to LO end, so it does not demand more about IF filter. - Standard SMA female connectors are suitable for connecting most devices.Specification: - 1. Power Supply: Passive Mixer (no Need for Power Supply) - 2. Rf Input: 1.5--4.5ghz - 3. Intermediate Frequency Output: Dc-1.5ghz - 4. Conversion Loss: 8.5db - 5. Noise Figure: 8.5db (ssb) - 6. Local Oscillator Input: 13dbm - 7. Port Isolation: - Local Oscillator to Rf: 40db (typical) - Local Oscillator to Intermediate Frequency: 35db (typical) - 8. High Input 1p3: 18dbm - 9. High Input P1db: 8dbm - 10. Dimensions: 33*33mm (excluding Connectors) - 11. Connector Model: Standard Sma Female (outer Screw and Inner Hole) - 12. Product Weight: 8g - 13. Material: Pcb Circuit BoardSize Chart:30x30cm/11.81x11.81inchPackage Includes:1 x Frequency MixerNote:1. Please allow slightly error due to manual measurement.2. Due to the difference between different monitors, the picture may not reflect the actual color of the item.3. Wish you a wonderful on-line shopping!

• Double-balanced RF mixer with high reliability & efficiency: 8.B loss, 40dB isolation | for radio frequency down-conversion in industrial & home applications
• Differential circuits ensure only product signal at output | High isolation between local oscillator & RF input for enhanced performance
• Passive power supply, no need for external power source | Suitable for 1.5-4.5GHz RF input and DC-1.5GHz intermediate frequency output
• Standard SMA female connectors for easy device compatibility | Compact size & lightweight PCB circuit board construction for portability
• Includes 1 x Frequency Mixer, 33*33mm dimensions | No need for additional IF filter due to good isolation at RF and IF ends
